Booster 60
Cost-efficient solution to treat small scale turf surfaces
Key features:
Affordable, small-scale grass care
Developed to treat 60 m2 of grass
Available with state-of-the-art controllable Dynamic LED Spectrum
Available in both HPS-SON-T, LED as well as Hybrid lighting
Optional data controlled grass management system
10 year LED warranty

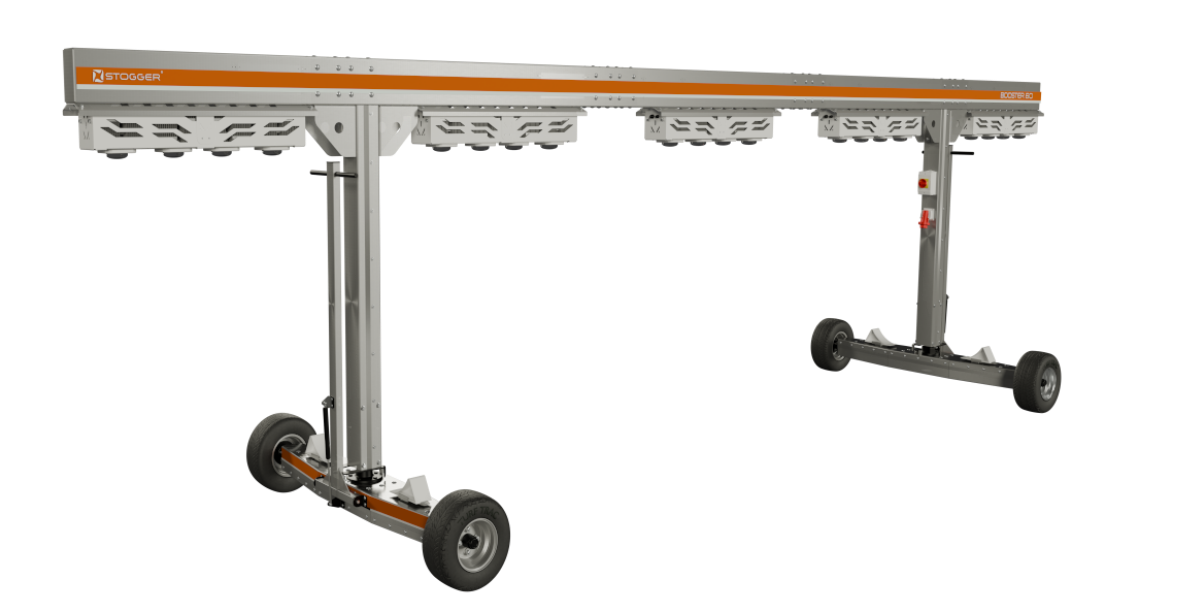

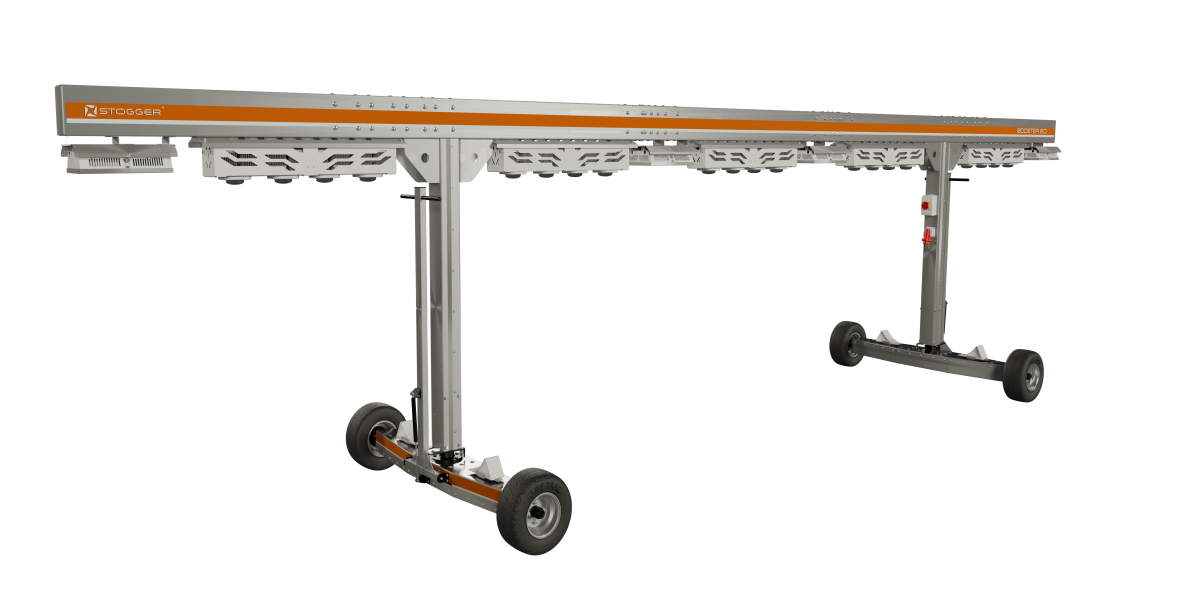

Booster 60
Small scale surface turf lighting solution

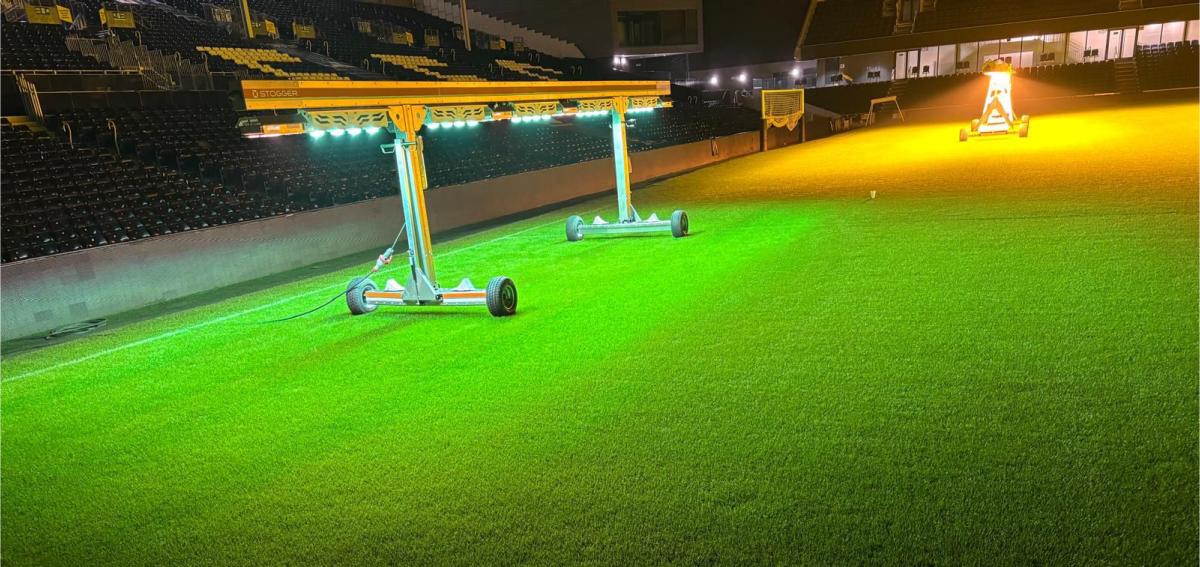

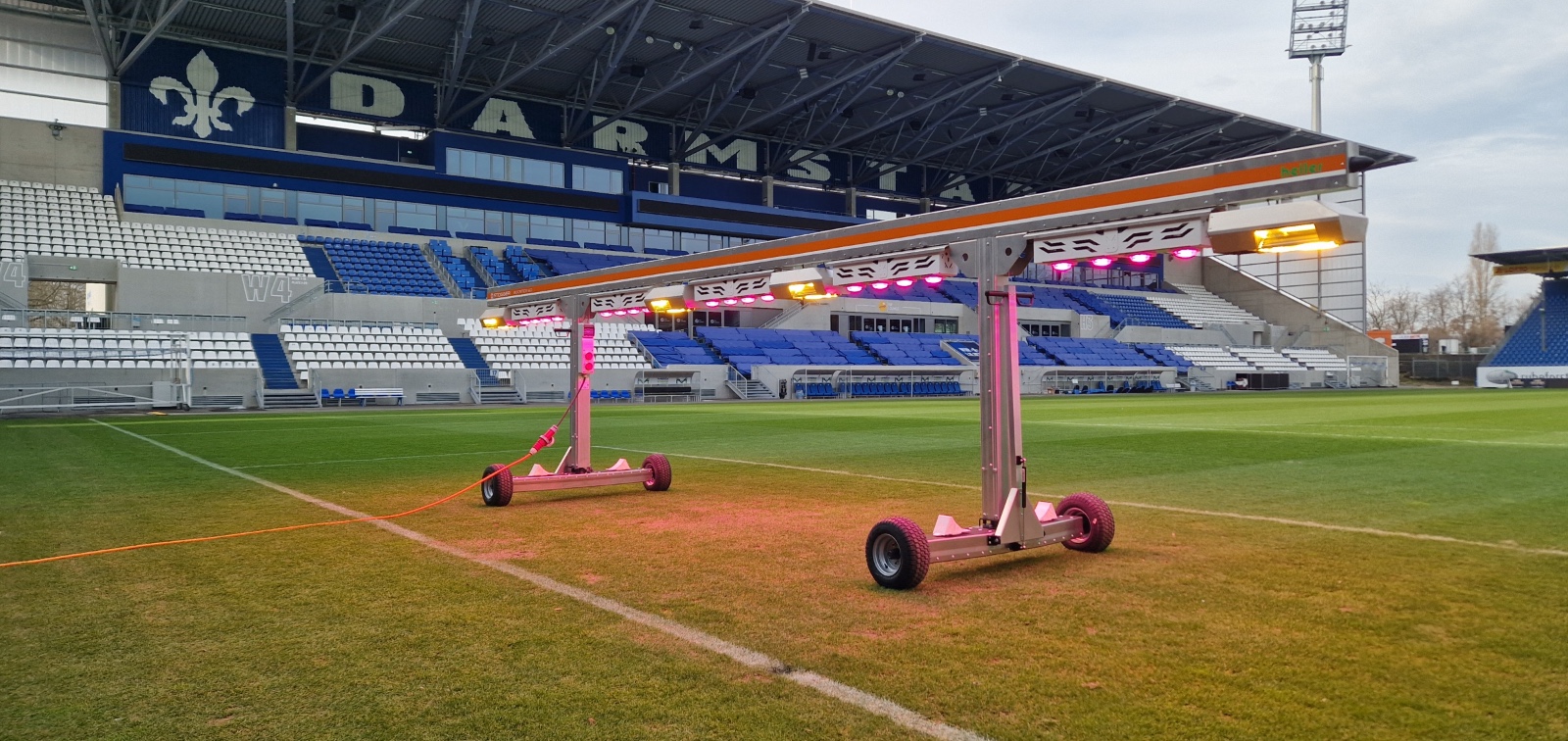

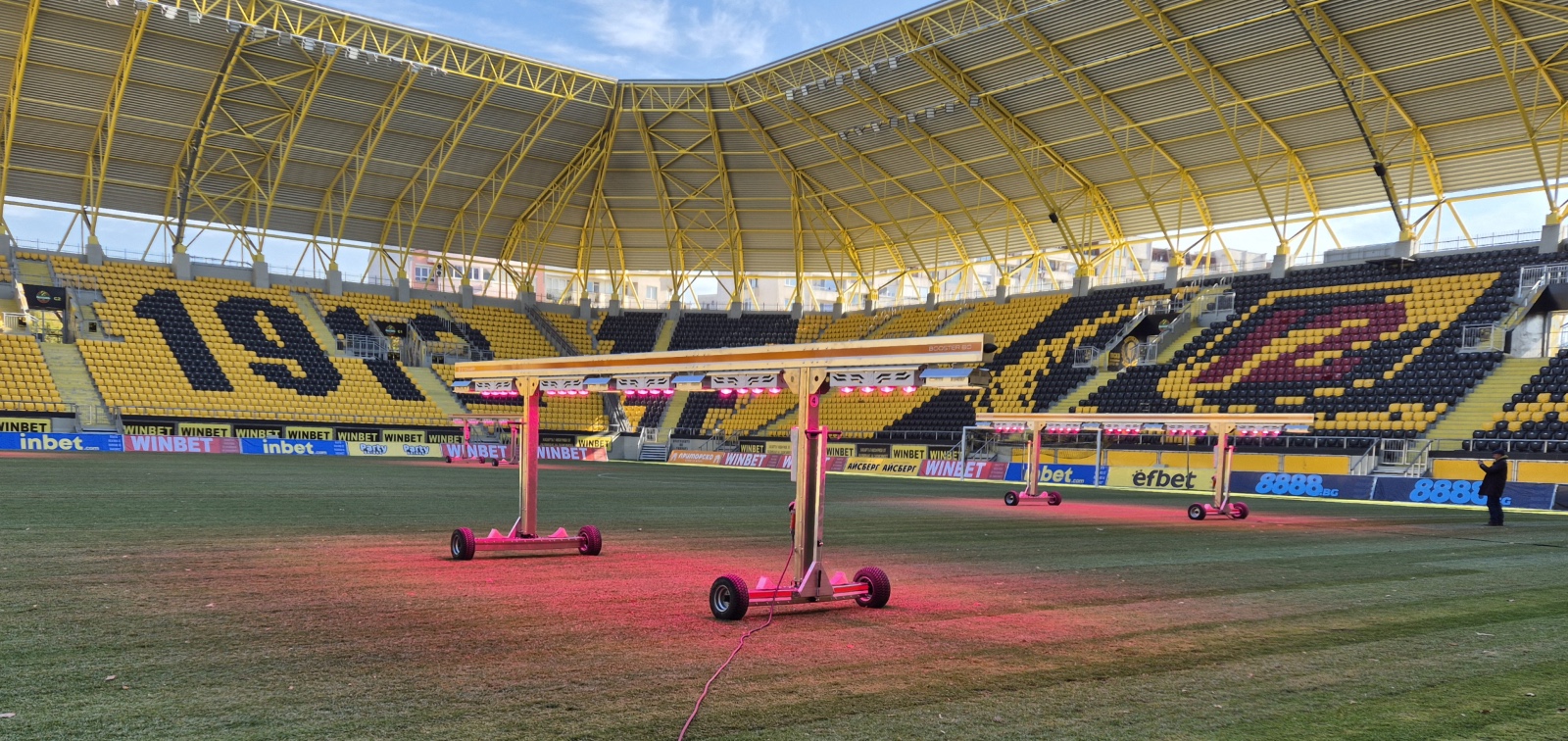

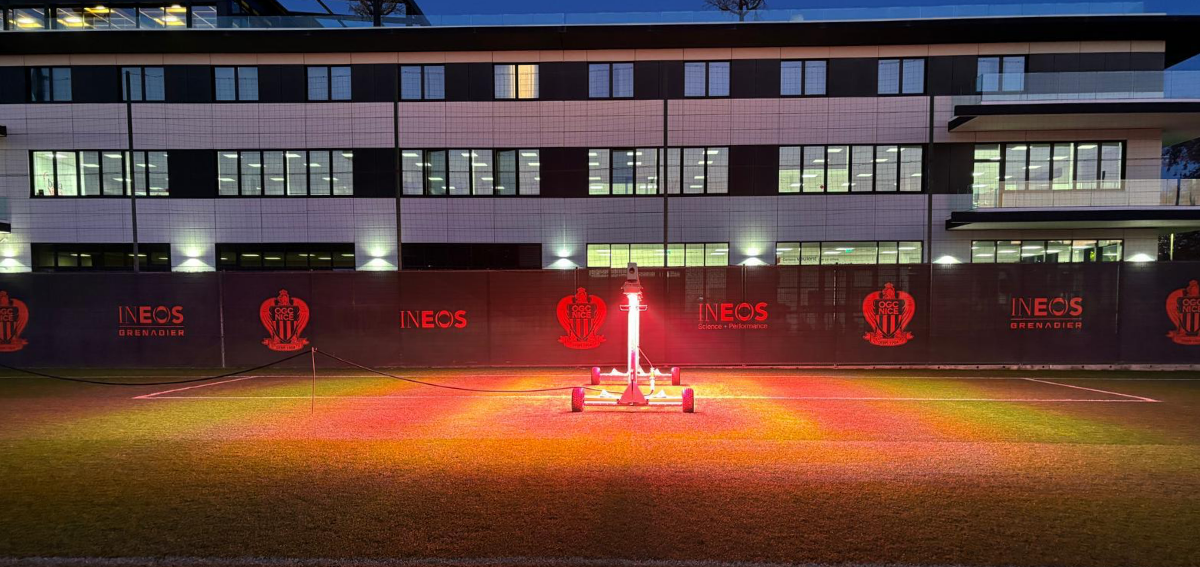

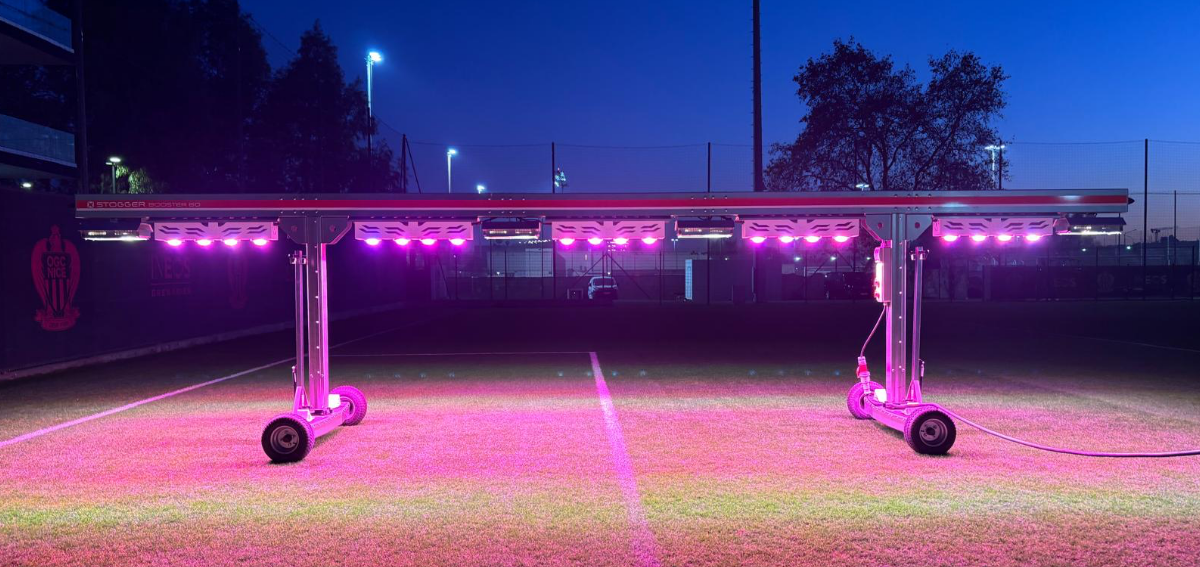

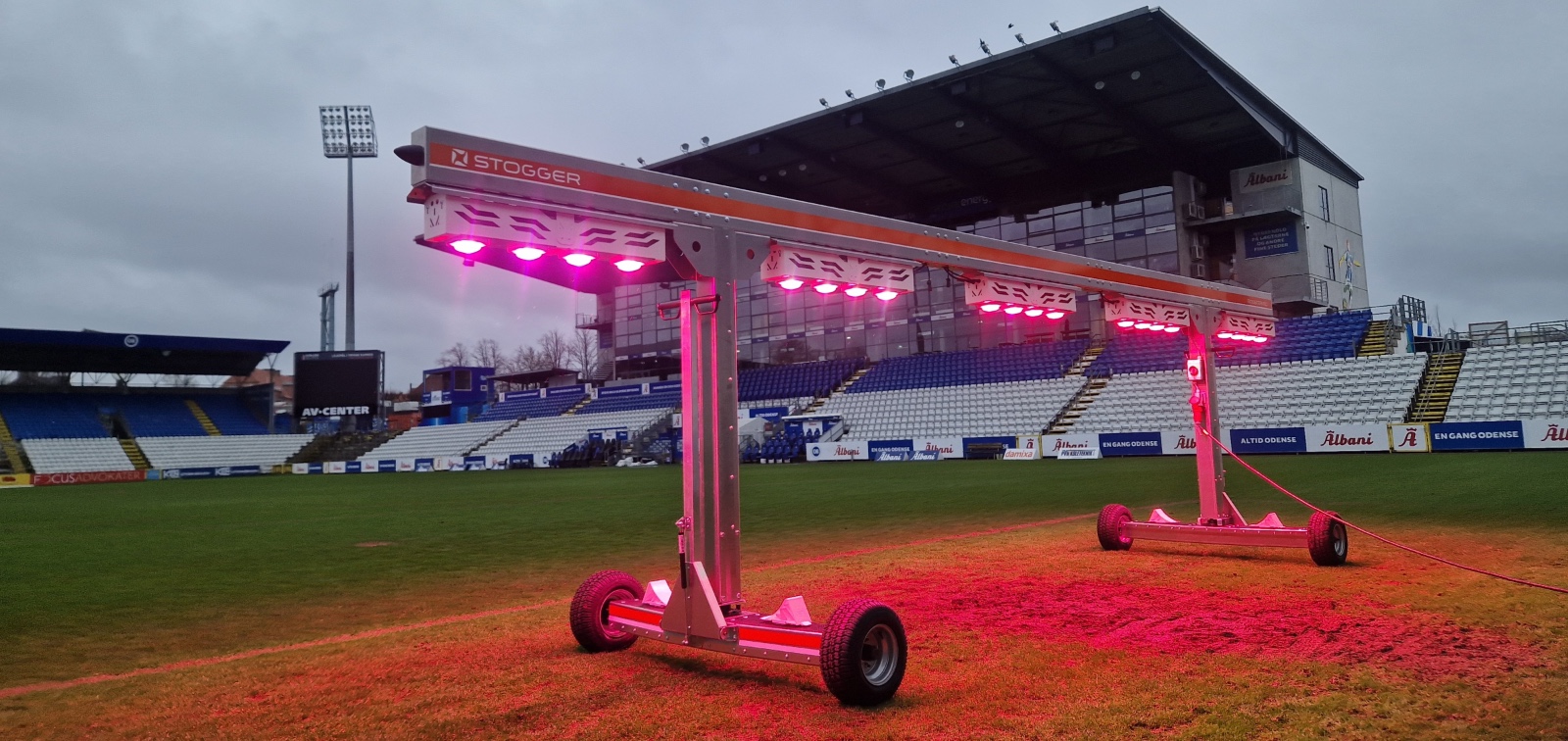

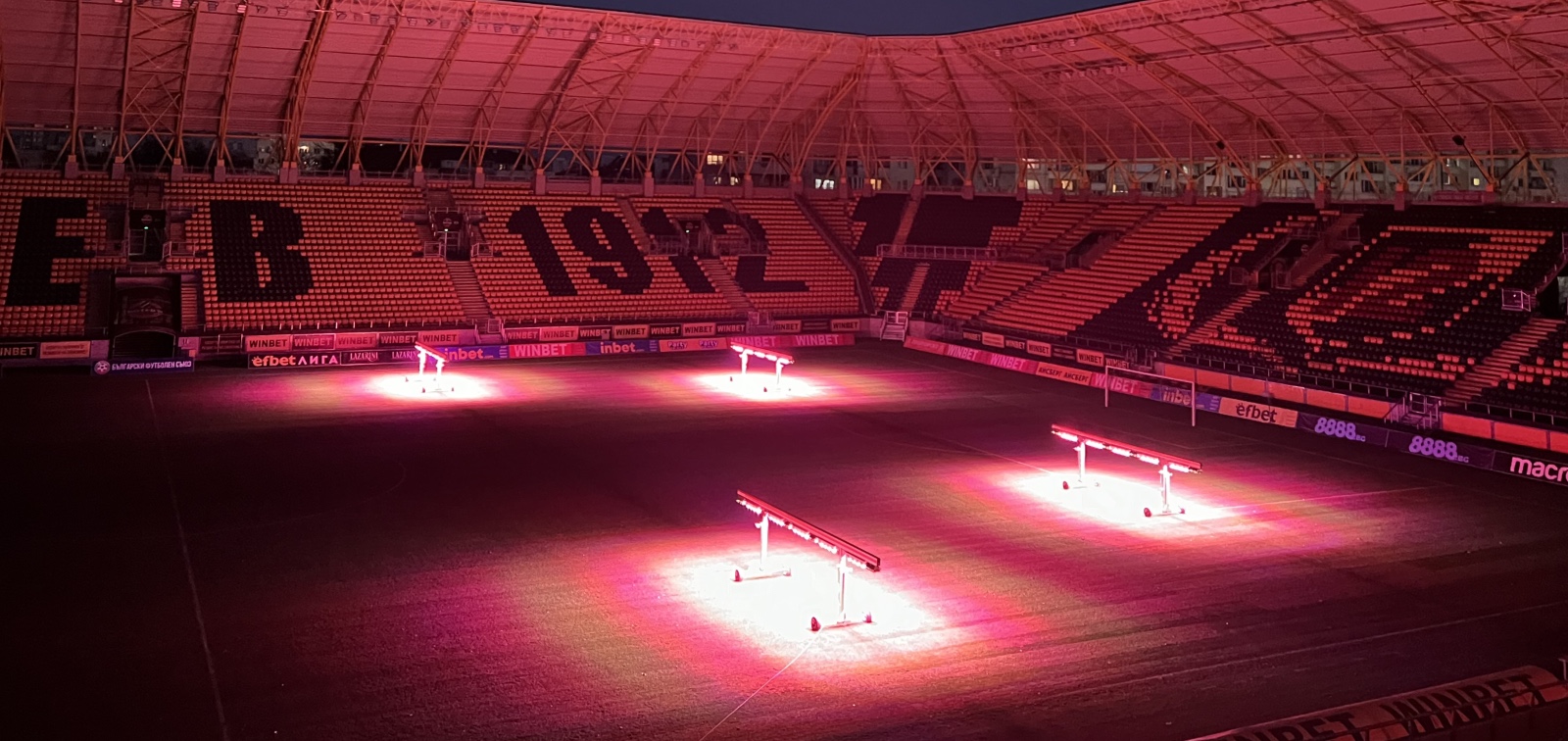

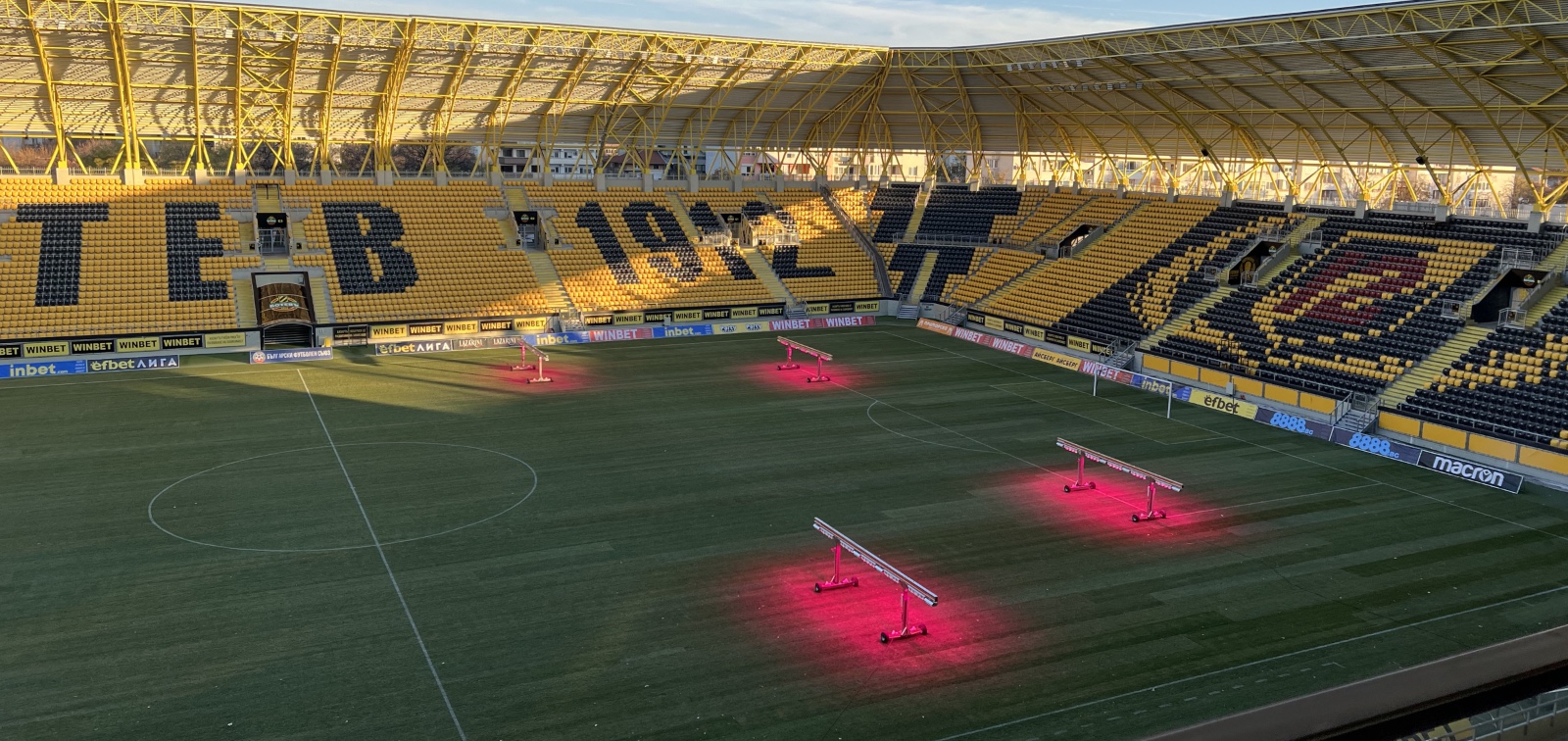

The Stogger Booster 60 is a cost-efficient grass grow solution. It is suitable to treat small turf surfaces of 60 m2 at different intensities and is available in both LED, LED and Heat as well as full HPS SON-T lighting. It recovers your grass after games and events, and ensures pitch quality throughout the year. The solution is both suitable for use in warm as well as cold climates. The lighting as well as heat intensity can be adjusted to prevent tipburn of the grass.
All features
Small surface growlight solution
Rental possible
Lowest operational costs by using LED
10 year LED warranty
Easy to use, simple design
Data controlled grass management system
State of the art LED technology from Mechatronix
90% more light than a 1000 watt HPS SON-T for the same energy!
Full light spectrum control
Fast delivery
Up to 50% more energy efficient than competing LED systems
Sensor integration
Innovative lens design result in more homogeneous grass growth
| Key specifications | Booster 60 | LED / LED + Heat / HPS SON-T |
|---|---|
| Turf pitch lighting area | 60 m2 |
| Light control | Off / On (softstart / -stop) |
| Climate control | No |
| Voltage | 110 - 400 Vac |
| Booster 60 LED | Specifications |
| LED fixtures | 5x Mechatronix CoolStack® |
| LED PPFD average | 342 µmol/m2/s |
| LED Energy consumption | 6,3 kW (9560/6300 W/m2) |
| LED Market leading efficiency | 3.485 µmol/J |
| LED dimming | 0 - 100% (wireless control) | Dimensions (LxWxH) | 9,2-8,0 x 1,9 x 2,2m |
| Total weight | ~275kg |
| Booster 60 LED + Heat | Specifications |
| Heat fixtures | 4x Dutch Lighting Innovations |
| LED + Heat PPFD average | 420 µmol/m2/s |
| Max energy consumption | 10,25 kW (170 W/m2) |
| Heat light efficiency | 2.100 µmol/J |
| Heat dimming | Yes, possible |
| Total weight | ~300kg |
Booster 60 explained
Small scale surface turf lighting solution

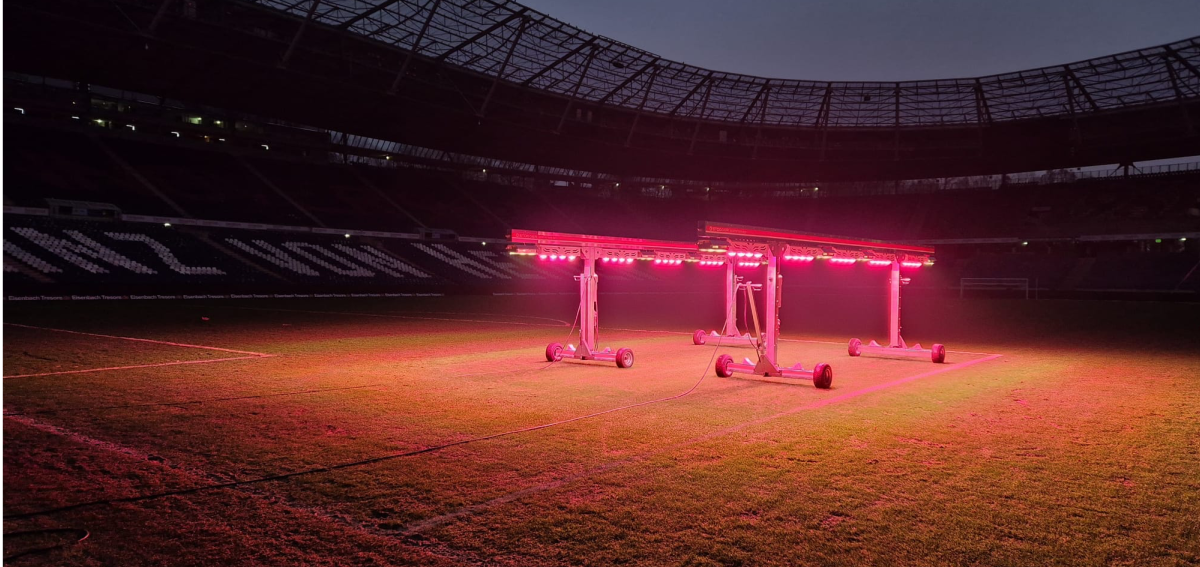

Booster 60 LED & LED + Heat
LED, LED and Heat or a full-HPS solution generate PAR light to to enable the process of photosynthesis by which a plant produces the food material (carbohydrates) it needs to function, recover and stay healthy.
LED, LED and Heat or a full-HPS solution generate PAR light to to enable the process of photosynthesis by which a plant produces the food material (carbohydrates) it needs to function, recover and stay healthy.
Assembly and installation
The Booster 60 is delivered fully assembled and ready for use, and can also be air-shipped on a pallet if needed. Connect to the electricity grid and start lighting the grass! We will provide you the necessary knowledge to plan your lighting.
The Booster 60 is delivered fully assembled and ready for use, and can also be air-shipped on a pallet if needed. Connect to the electricity grid and start lighting the grass! We will provide you the necessary knowledge to plan your lighting.
Low weight, easy usage
Due to the aluminium frames and the low weight, the Booster 60 is easily maneuverable and replaceable by only 1 fieldmanager.
Due to the aluminium frames and the low weight, the Booster 60 is easily maneuverable and replaceable by only 1 fieldmanager.
Easy control
The control is easy and intuitive. Manual controls allow to put the Booster on and off. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
The control is easy and intuitive. Manual controls allow to put the Booster on and off. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
