Booster 460
Cost-efficient solution to treat large turf surfaces
Key features:
Affordable, large-scale turf care growlight solution
Developed to treat 460m2 of grass
Available in both LED as well as LED + Infra Red heating.
Data controlled grass management system
Booster 460
Large surface turf lighting solution

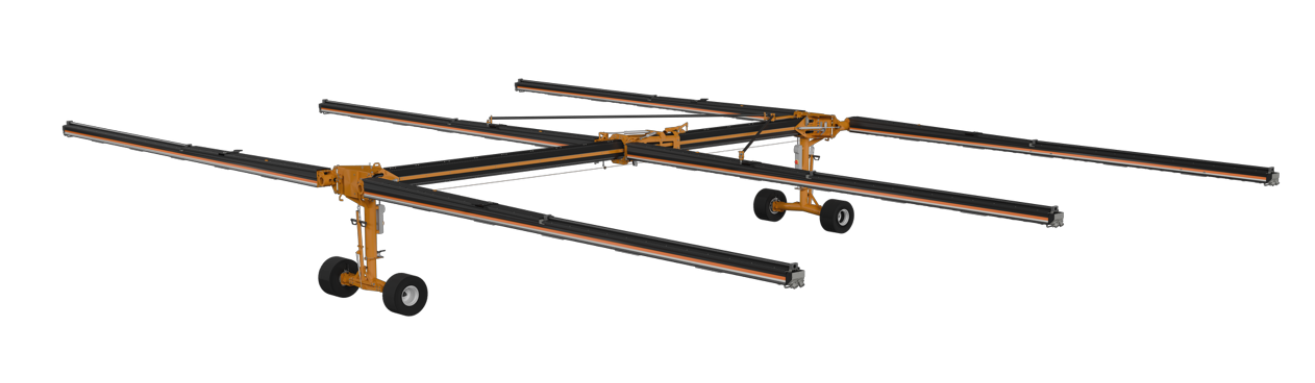

The Stogger Booster 460 is the lightest and biggest 400 range growlight solution on the market. It is suitable to treat large turf surfaces of 460 m2 at different intensities and is available in both LED as well as in LED + infra red heating. It recovers your grass after games and events, and ensures pitch quality throughout the year. The solution is both suitable for use in warm as well as cold climates. The lighting as well as heat intensity can be adjusted to prevent tipburn of the grass.
All features
Semi-large surface growlight solution
Rental possible
Lowest operational costs by using LED
10 year LED warranty
Easy to use, simple design
Data controlled grass management system
State of the art LED technology from MechaTronix
120% more light than a 1000 watt HPS SON-T for the same energy!
Full light spectrum control
Fast delivery
Up to 50% more energy efficient than competing LED systems
Sensor integration
Innovative lens design result in more homogeneous grass growth
| Key specifications | Booster 460 | LED |
|---|---|
| Lighting footprint in operation | 460 m2 |
| Average illumination level (PPFD) | 375 μmol/m2/s (highest industry average) |
| Max illumination level (PPFD) | 600 μmol/m2/s (highest in the industry) |
| Dimensions of the device (LxWxH) | 12m x 20m x 2,5m |
| Weight | 1850 kg |
| LED | 36x 1248W MechaTronix Coolstack® PRO |
| Thermal | 30x 1100W IR heater |
| Electrical socket | 2x 63A |
| Maximum consumption | 2x 60A |
| Number of pins per socket | 5 (3 phase, Neutral, Earth) |
| Extension cable | Optional available |
| Voltage | 400 V |
| Power LED without heating | 45 kW |
| Power LED with heating | 78 kW |
Booster 460 explained
Height adjustable turf-lighting system
Booster 460 HPS & LED
HPS, LED or a combination of both fixtures generate PAR light to to enable the process of photosynthesis by which a plant produces the food material (carbohydrates) it needs to function, recover and stay healthy.
HPS, LED or a combination of both fixtures generate PAR light to to enable the process of photosynthesis by which a plant produces the food material (carbohydrates) it needs to function, recover and stay healthy.
Assembly and installation
The Booster 460 is delivered complete and ready to use. Connect to the electricity grid and start lighting the grass! We will provide you the necessary knowledge to plan your lighting.
The Booster 460 is delivered complete and ready to use. Connect to the electricity grid and start lighting the grass! We will provide you the necessary knowledge to plan your lighting.
Convenient usage
Due to the aluminium frames, the Booster 460 is easily maneuverable and replaceable by 2 fieldmanagers. Additional integrated motorized axles are available for replacing by 1 fieldmanager.
Due to the aluminium frames, the Booster 460 is easily maneuverable and replaceable by 2 fieldmanagers. Additional integrated motorized axles are available for replacing by 1 fieldmanager.
Easy control
The control is easy and intuitive. Manual controls allow to put the Booster on and off. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
The control is easy and intuitive. Manual controls allow to put the Booster on and off. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
